INAC LOOPS

The INAC series of loops will give you performance near that of a half wave dipole for a fraction of the size.

	Gain figures for the AH1430 compared to a half wave dipole are; 10Mhz -5.7dB 16Mhz -3.8dB 22Mhz -2.1dB 24mhz -1.8dB 30Mhz -0.9dB Bandwidth before retuning; 10Mhz 60Khz 16Mhz 90Khz 22Mhz 120Khz 24Mhz 140Khz 30Mhz 160Khz

Models available are: Model, Coverage, Power, Size, Weight, AH376, 3.0-7.7 Mhz 140-180W 98x 63cm 5kg AH521, 5.6-21.9Mhz 100-160W 98x63cm 5kg AH521H, 5.6-21.9 Mhz 140-260W 98x63cm 9kg AH1430, 13.8-30.0 Mhz 140-260W 98x63cm 4.5kg AH1430H, 13.8-30.0Mhz 160-300W 98x63cm 6.2kg AH1430HL, 13.8-30.0Mhz 360-600W 98x63cm 8.2kg AX721, 6.9-21.7 Mhz 120-180W 147x110cm 8.3kg AX310, 2.4-10.3 Mhz 180-350W 147x110cm 8.0kg
AH-376

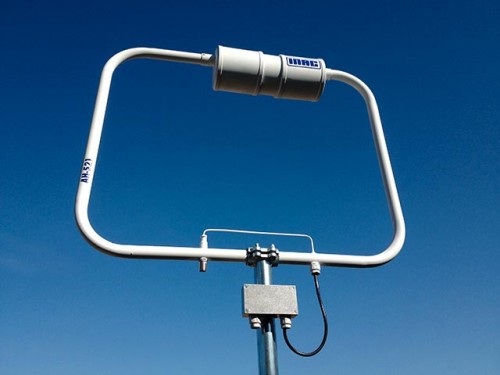

AH-512

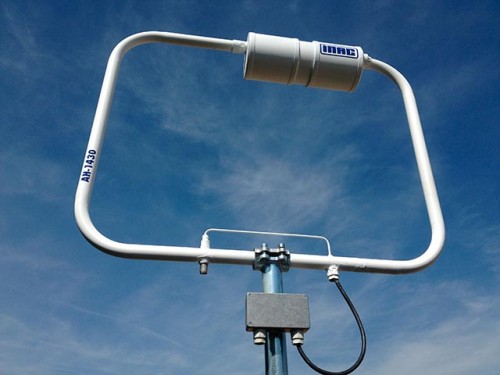

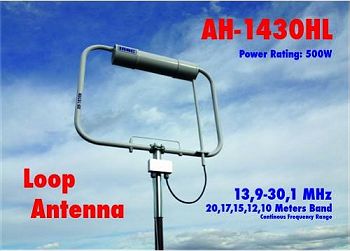

AH-1430

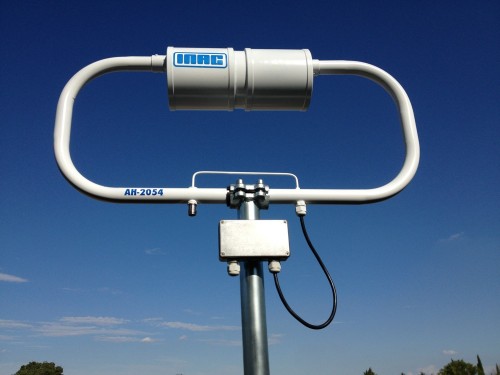

AH-2054

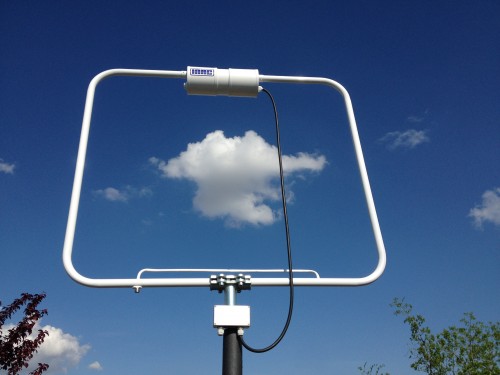

AX-310

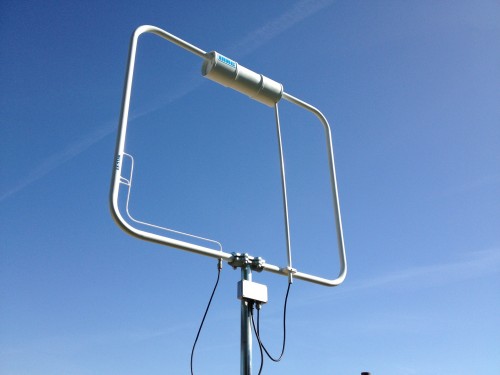

AH-314H

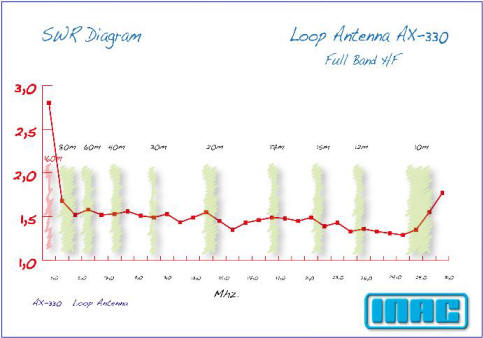

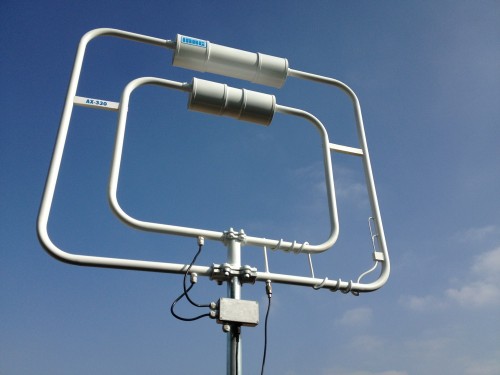

AX-330
AX-721
